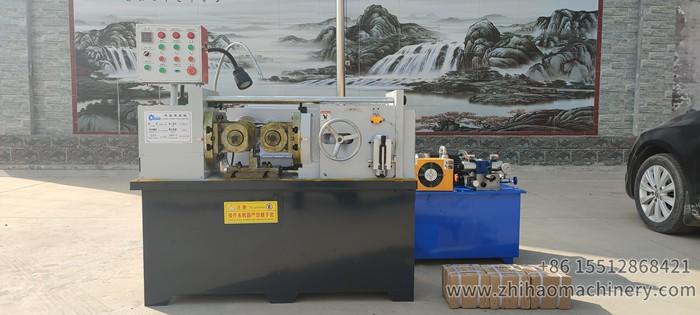

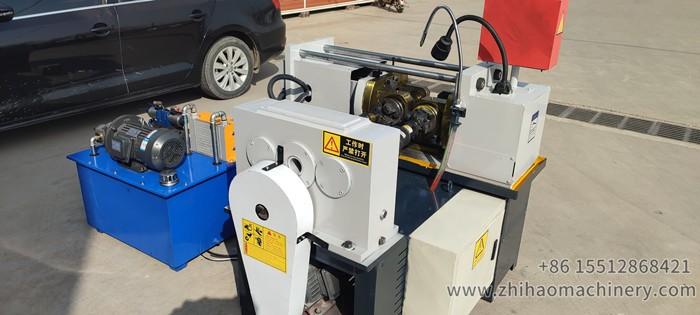

Automatic Steel Rod Threaded Machine For Georgia
Technical parameter of Z28-40 anchor bolt threading machine:
Rolling thread range Diameter 4-36mm
Roller size range
Outdiameter 120-170mm
Thread pitch 0.5-4mm
Hole 54mm
Spindle Angle ±6°
Max width 100mm
Max rolling pressure 120kn
Spindle drive power 4.0kw
Spindle RPM 39/49/66/82rpm

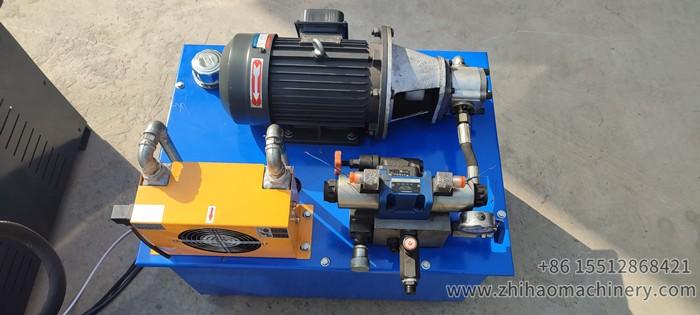

Hydraulic transmission power 2.2kw
Dimension 1450*1300*1300mm
Weight 1200kg

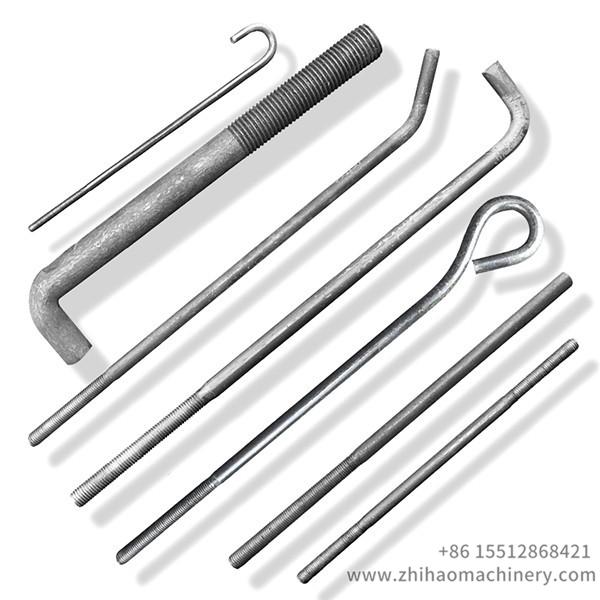

Automatic Steel Rod Threaded Machine manufactured by zhihaomachinery. This type thread rolling machine machine is used for making threaded bars, bolts, studs, u-bolts, foundation bolts etc. This machine is Hydraulic operated with 2 thread rolls which are made from D2 material for long life operation, moreover they can be used again and again after resharping them. Machine is fitted with very easy to operate control pannel as well as machine can be operated from foot pedal too. Thread Rolls are made according to the requirement of client and thread size, moreover heat treated to have almost double life than normal. Coolant oil which is having auto circulation provides long life to the thread rolls of threading machine as well as help to give proper finish to the threaded rods.
This two rollers thread rolling machine is known as with different names:
Rail screw spike thread rolling machine
Vietnam 2X thread rolling machine
Steel bolts thread rolling machine
Russia tie rod screw thread rolling machine
U bolts thread rolling machine
Taiwan thread rolling machine for sale
China thread rolling machine price
Anchor bolt thread rolling machine
Tie rod hydraulic thread rolling machine
